SPE 2023+ Raptor R Intercooler Manifold

SPE is happy to introduce our new 2023+ Raptor R intercooler manifold. The blower water manifold connects to the intercooler under the supercharger lid to supply it with water/coolant. The factory piece leaves much to be desired in the flow department. Being it is a cast part flow was not the main concern ease of production and installation were. SPE has developed our solution around optimum performance for your intercoolers cooling needs. If you track the car, weekend cruise, or daily drive it this can be a beneficial upgrade.

The SPE blower water manifold for your 2023+ Raptor R includes the fittings and hose ends needed to install it. The fittings and tubes can be configured based on the type of intercooler you are running. We support the Whipple and stock intercooler core. Our stock intercooler connection tubes are .060 larger internally than the factory ones. You also have the option to run the factory size 3/4 (-12 hose) or upgrade to -16 fittings for an ice tank setup. One of the downfalls of the 2023+ Raptor R when modifying them for more power is the lack of a manifold pressure reference port. There needs to be a place on the engine to reference boost/ vacuum, which can make things difficult when installing fuel pumps that require a pressure switch, or a boost gauge etc. This means no need to drill and tap the blower lid when using the SPE blower water manifold. SPE's design seals the water manifold to the blower lid with the factory gasket rather than a hard to find custom o-ring. This makes it much easier to replace if needed.

Features and Benefits:

Increased flow
Hard Anodized Black
Made from 6061 billet aluminum
Works with factory or Whipple intercooler core
Pressure port for vacuum and boost
Retains proper sized coolant vent hose
Stainless steel Intercooler connection tubes (same material as factory)
Large Internal diameter intercooler tubes
Uses factory gasket for ease of installation and replacement
Includes all necessary fittings and hardware to install
One of the cleanest and best flowing kits on the market

Kit Includes:

Blower water manifold
All required fittings, O rings and plugs
2 Intercooler connection tubes
2 Hose ends
2 ORB AN adapters
All required hardware

VEHICLE COMPATIBILITY:

2023+ Raptor R

Price

Collections

Raptor R Cooling Systems

SPE Motorsport 2023+ Raptor R Thermostat

SPE Motorsport 2023+ Raptor R Intercooler Manifold

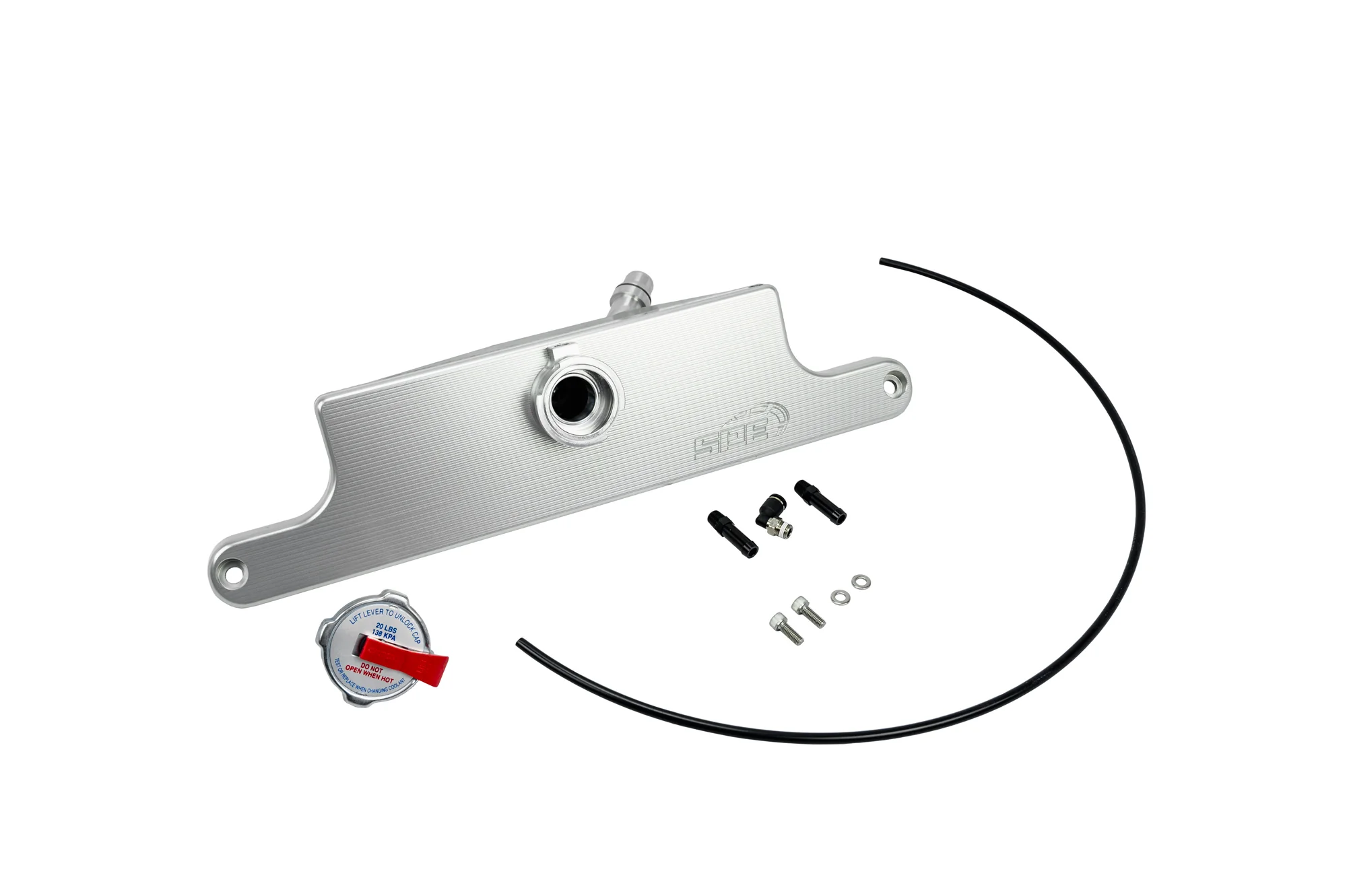

SPE Motorsport Ford 2015+ F150 Billet Degas Tank
